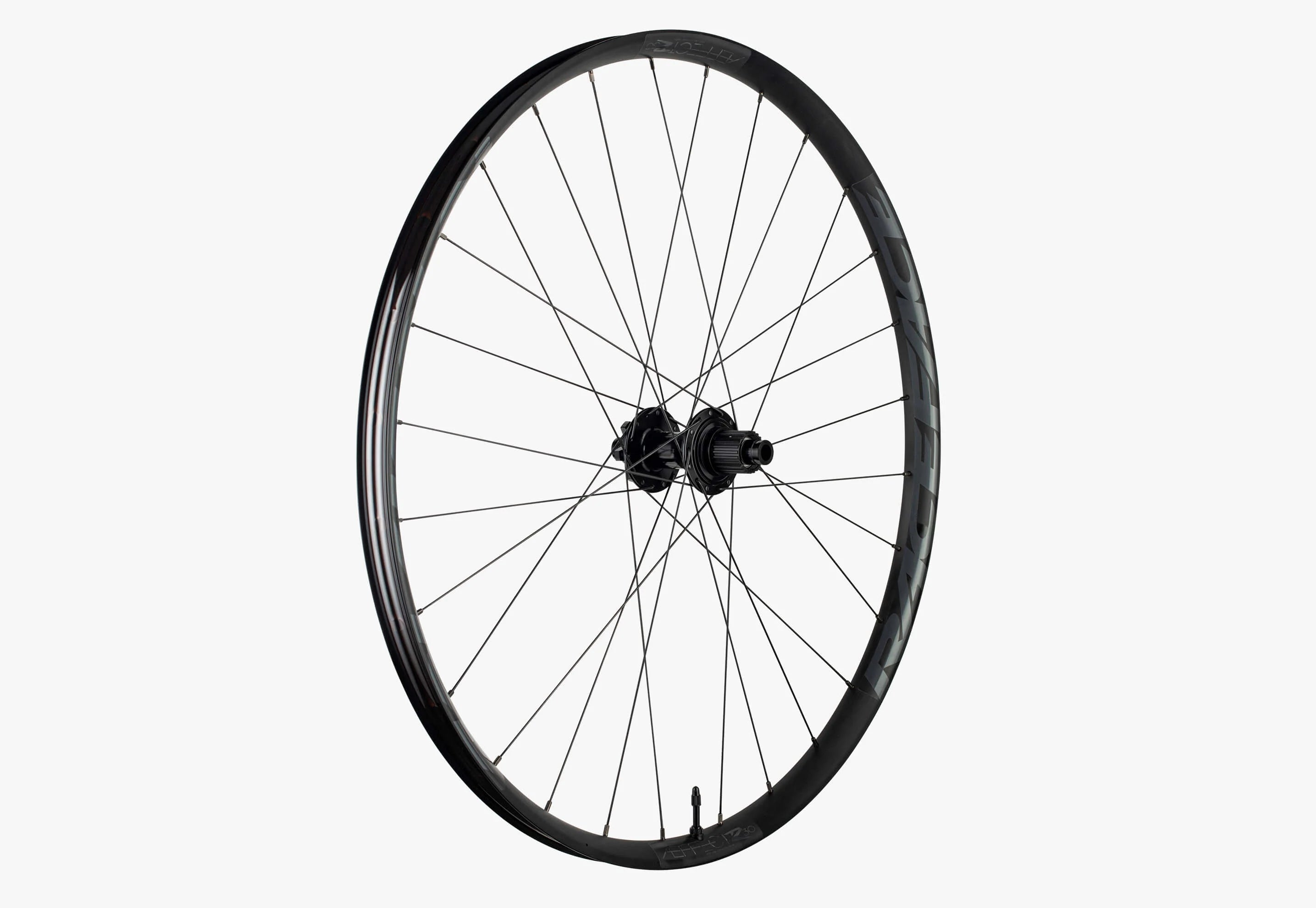

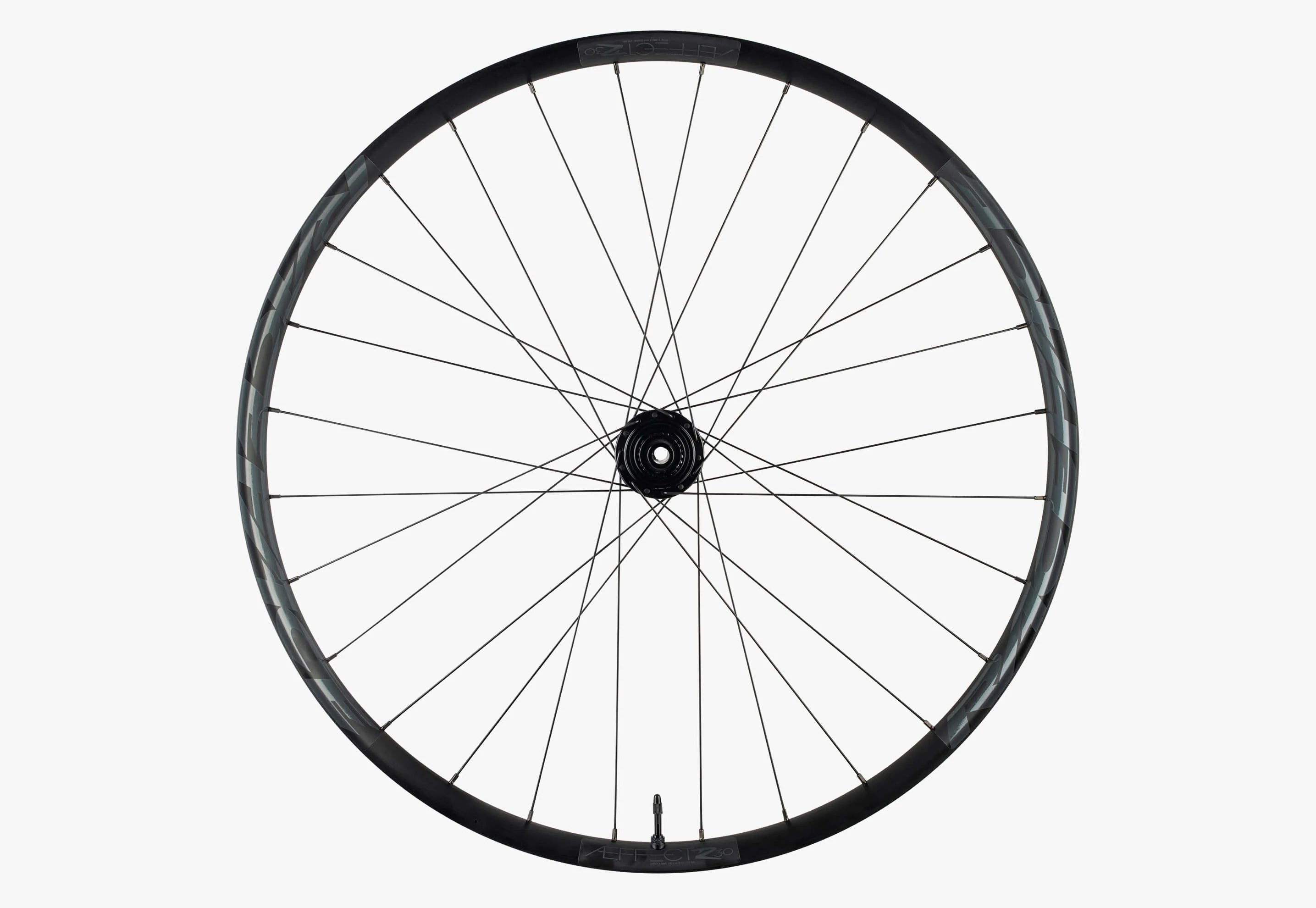

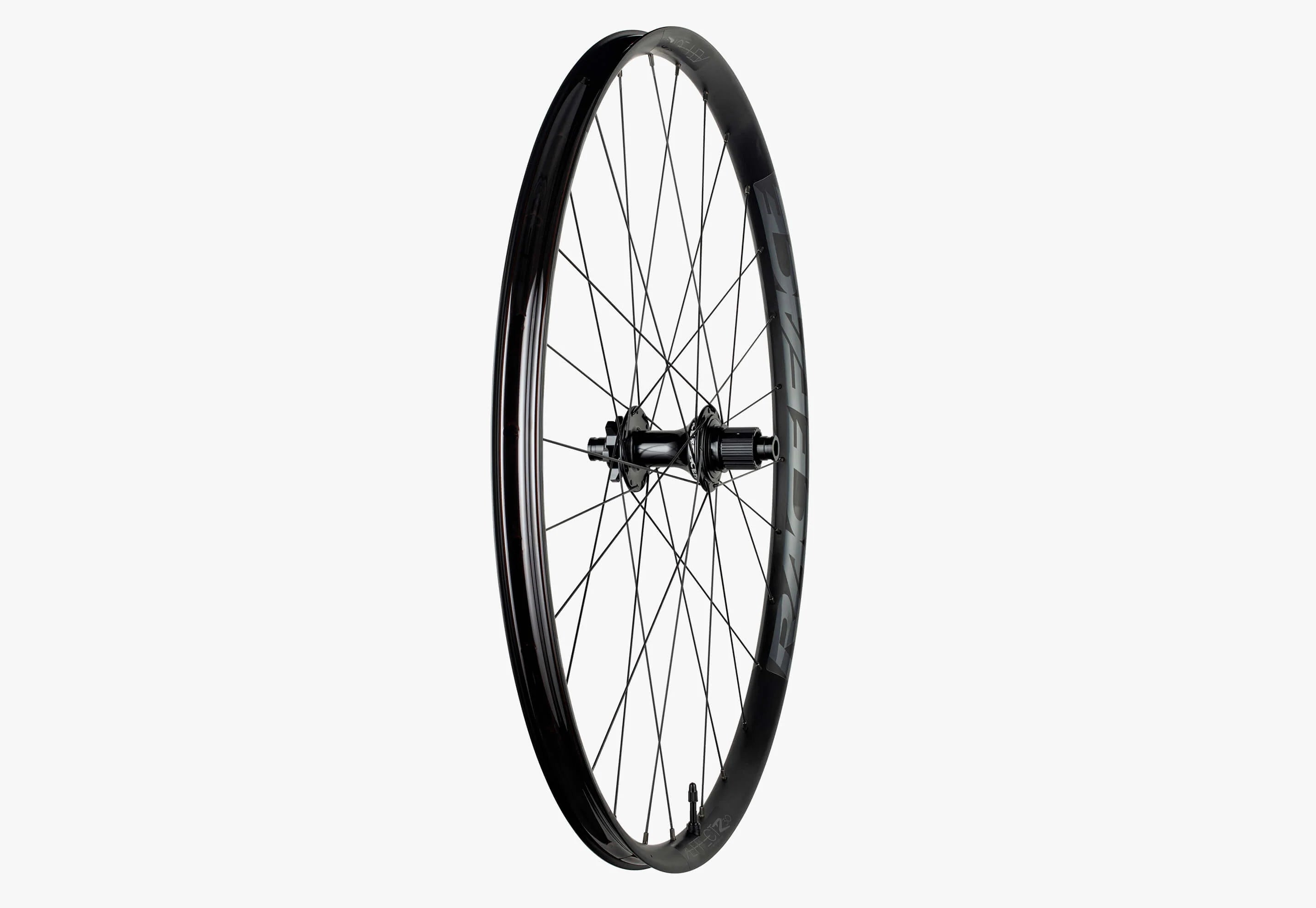

Aeffect R – Mountain bike rear wheel

Aeffect R rear wheel: aluminum and tubeless ready

The Aeffect R rear wheel combines a 6069 aluminum rim with a 30 mm internal width. An option for your mountain bike build, featuring a tubeless ready rim and 28 J-bend spokes.

Detailed construction

The build uses 2.0/1.7/2.0 mm double-butted spokes, 3-cross laced, along with black brass nipples. Five spare spokes are included with the rear wheel.

Technical specifications

• Color: black
• Rim material: 6069 aluminum
• Internal width: 30 mm
• External width: 34 mm
• Spoke count: 28
• Head type: J-bend
• Spoke thickness: 2.0/1.7/2.0 mm
• Lacing: 3-cross (3X)
• Spoke offset: 4.5 mm
• Nipples: black brass
• Tubeless ready rim
• Included: 5 spare spokes

Choosing a compatible wheel

Before purchasing, check the wheel diameter, rear axle standard, freehub body, and disc mount required for your bike. The term tubeless ready describes the rim's compatibility and does not confirm that all tubeless mounting accessories are included.

Product sold: one rear wheel. The weights of 1,920 g for 27.5" and 2,000 g for 29" provided by the manufacturer refer to a wheelset, not the rear wheel alone.
